Specifications |
Specifications
| pg. 114 | Dimensions and weights |
| pg. 115 | Label information |
| pg. 116 | Oil specifications |
| pg. 117 | Engine specifications |
| pg. 120 | Electrical system specifications |
| pg. 121 | Capacities |
Dimensions and weights
740 GL
740 Turbo
740 GLE - 16 valve
Length
188.4"
478.5cm
Width
68.9"
175 cm
Height
56.5"
143 cm
Wheelbase
109"
277 cm
Track:
front
57.5"
146 cm
rear
57.5"
146 cm
Turning circle, between curbs
32.5 ft
9.9 m
Trunk capacity (sedans)
16.8 cu. ft.
0.487 cm
Cargo capacity (wagons)
With rear seats up
39.3 cu. ft.
1.1 m
With rear seats down
74.9 cu. ft.
2.1 m
WARNING!
|
Consult your Volvo dealer for information.
All specifications are subject to change without notice.
Gross Vehicle Weight (GVW)
GL/GLE - 16 valve (Sedan)
3965 lbs (1865 kg)
TURBO (Sedan)
4050 lbs (1840 kg)
GLE (Wagon)
4275 lbs (1920 kg)
TURBO (Wagon)
4295 lbs (1950 kg)
Capacity weight: (sedan)
1000 lbs (455 kg)
Capacity weight: (740 GLE - 16 valve wagon)
1045 lbs (475 kg)
Capacity weight (740 Turbo wagon)
1035 lbs (470 kg)
Permissible axle weight, front
GL, GLE - 16 valve
1940 lbs (880 kg)
TURBO
2050 lbs (930 kg)
Permissible axle weight, rear
GL, GLE - 16 valve (sedan)
2030 lbs (922 kg)
TURBO (sedan)
2090 lbs (950 kg)
Max. roof load
220 lbs (100 kg)
Max. trailer weight
3300 lbs (1500 kg)
Curb weight (Sedan)
3003- (1351-
3117 lbs 1402 kg)
Curb weight (Wagon)
3135- (1410-
3239 lbs 1457 kg)
The max permissible axle loads must not be exceeded

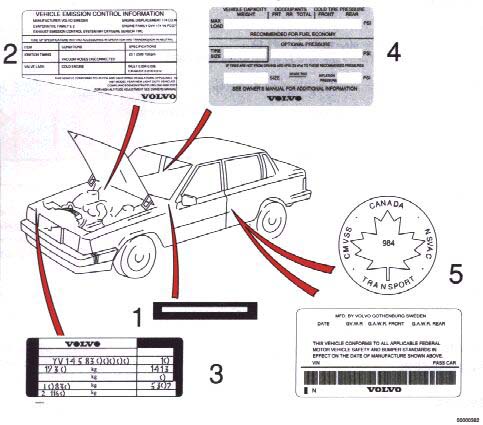

The Vehicle Identification Number (VIN) should always be quoted in all correspondence concerning your vehicle with the dealer and when ordering parts.
1
Vehicle Identification Number (VIN) *
VIN plate is located on top left surface of dashboard. The VIN is also stamped on the right hand door pillar.
2
Vehicle Emission Control Information
Your Volvo is designed to meet all applicable emissions standards, as evidenced by the certification label on the left wheelhousing. For further information regarding these regulations, please consult your Volvo dealer.
3
Model Plate
Vehicle Identification Number (VIN). Codes for color and upholstery etc. This plate is located on panel above right headlight.
4
Loads and Tire Pressures
Label on right-front door frame
5
Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) Standards (Canada)
This label is located on rear-facing side of the driver's door.
All specifications are subject to change without notice.

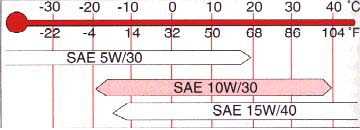

Engine oil
Oil quality:
According to API SG or alternatively API SF
Oil with designation SG - CD, also comply with these demands.
Synthetic or semi-synthetic oils may be used if their specifications comply with the above.
Volvo recommends the use of fuel economy improving oils. Look for the API label.
Volvo does not recommend oil additives as they can adversely affect the engine.
Capacity
(including oil filter): 4.0 US qts. (3.85 liters);on Turbo models, add 0.7 US qts (0.6 liters) if oil cooler is drained.
|
Manual transmission |
Quality:
Volvo synthetic gearbox oil
|
Capacity:
(M46) 2.4 US qts (2.6 liters)
|
|
Automatic transmission |
Quality : ATF Dexron IID |
Capacity : 7.9 US qts. (7.5 liters) |
|
Rear axle |
Quality
: Volvo rear axle oil 1161329 or API-GL-5 (MIL-L-2105 B or C)
|
Capacity : 1.7 US qts (1.6 liters) |
|
Power steering |
Quality : Type F |
Capacity : 0.7 US qts. (0.7 liters) |
|
Brake fluid |
Brake fluid type : DOT 4 |
Capacity : 0.66 US qts. (0.5 liters) |
NOTE
:
|
740 GL
(B 230F engine)
Cooling system
Type
Positive pressure, Closed system
Thermostat: begins to open at
(GL, GLE - 16 valve)
189º F (87º C)
(Turbo)
198º F (92º C)
Fan belts, designation: (GL, GLE - 16 valve)
HC47cog x 1013
(Turbo)
HC47cog x 1000
Coolant: Volvo coolant type C (blue-green)
Capacity: 10 US qts (9.5 liters)
Ignition System
Firing order
1-3-4-2
Ignition setting:
(GL)
12º B.T.D.C. at 750 rpm
(GLE 16 valve)
12º B.T.D.C. at 850 rpm
(Turbo)
12º B.T.D.C. at 750 rpm
Spark plugs (GL, Turbo GLE - 16 valve)
Volvo P/N270.146-1
Spark plug gap
0.028-0.032" (0.7-0.8 mm)
Tightening torque
15-22 ft. lbs. (20-30 Nm)
Distributor, direction of rotation Clockwise
POWER TRANSMISSION
Manual or automatic transmission
Hypoid type final drive
Manual transmission M46 M47
Reduction ratios:
1st gear
4.03:1
4.03:1
2nd gear
2.16:1
2.16:1
3rd gear
1.37:1
1.37:1
4th gear
1:1
1:1
5th gear
-
0.82:1
Overdrive
0.78:1
-
Reverse
3.68:1
3.68:1
Rear axle
Reduction ratios: 3.73:1
3.54:1
3.31:1
Automatic transmission AW70L & AW71
Reduction ratios:
1st gear
2.45:1
2nd gear
1.45:1
3rd gear
1:1
4th gear
0.69:1
Reverse
2.21:1
Rear axle
Reduction ratios
4.10:1
3.73:1
Automatic transmission AW 72 L ( 740 GLE - 16 valve)
Reduction ratios:
1st gear
2.83:1
2nd gear
1.49.1
3rd gear
1:1
4th gear
0.73:1
Reverse
2.70:1
Rear axle
Reduction ratios:
4.10:1
Speeds at 1000 engine rpm (manual transmission)
|
Rear axle ratio |
3.73:1 |
|
3.54:1 |
|
3.31:1 |
||||
|
|
|
mph |
km/h |
|
mph |
km/h |
|
mph |
km/h |
|
1st gear |
|
5.0 |
8.0 |
|
5.0 |
8.0 |
|
5.3 |
9.0 |
|
2nd gear |
|
8.8 |
14.0 |
|
9.2 |
14.8 |
|
9.8 |
16.0 |
|
3rd gear |
|
14.4 |
23.0 |
|
14.5 |
23.4 |
|
15.5 |
25.0 |
|
4th gear |
|
19.4 |
31.0 |
|
19.9 |
32.1 |
|
21.3 |
35.0 |
|
Overdrive/5th gear |
|
25.0 |
40.0 |
|
25.2 |
40.6 |
|
26.9 |
42.0 |
|
Reverse |
|
5.0 |
8.0 |
|
5.4 |
8.7 |
|
5.8 |
10.0 |
Front suspension
McPherson-type spring and strut suspension. Shock absorbers housed in strut casing. Rack-and-pinion steering.
Safety-type steering column.
The alignment specifications apply to an unloaded car, but include fuel, coolant, and spare wheel.
Toe-in, measured on the wheel rim:
5/64" +/- 1/64" (2 mm +/- 0.5 mm)
tire sides:
3/32" +/- 1/32" (2.5 +/- 1 mm)
All specifications are subject to change without notice.
ELECTRICAL SYSTEM
12 V, negative ground.
Voltage-controlled alternator. Single-wire system with chassis and engine used as conductors.
Voltage
12 V
Battery, type
Maintenance free
450 A/90 min
(GLE 16 valve 500A/90 min)
Electrolyte, specific gravity
1.28
Recharge at
1.23
Alternator, rated output
1120 W (GL, GLE - 16 valve)
1400 W (Turbo)
max. current
80 A (GL, GLE - 16 valve)
100 A (Turbo)
The following bulbs may be obtained from your nearest Volvo dealer:
|
Lights, 12 V |
US bulb No. |
Power |
Socket |
|
Headlights |
HB/9004 |
65/45 W |
- |
|
Parking lights,front |
|
|
|
|
turn signals, front |
1157 N.A. |
21/5 W/24/2.2 cp |
BAY 15 d |
|
turn signals, rear |
1156 |
21W/32cp |
BA 15s |
|
Tail lights |
2x67 |
5 W/4cp |
BA 15s |
|
Brake light |
1156 |
21 W/32cp |
BA 15s |
|
Tail light/brake light * |
1157 |
21/5W/32/3cp |
BA 15d |
|
High-mounted brake light |
|
21 W/32cp |
BA 15s |
|
Back-up lights |
1156 |
21 W/32cp |
BA 15s |
|
Rear fog light |
1156 |
21 W/32cp |
BA 15s |
|
License plate light |
4 W |
BA 9s |
|
License plate light * |
3 W |
BA 9 s |
|
Door warning lights |
3 W |
W 2.1x9.5d |
|
Interior light |
10 W |
SV8.5 |
|
Reading lights, front |
5 W |
W 2.1x9.5d |
|
Engine compartment light |
10 W |
SV 8.5 |
|
Trunk light |
10 W |
SV 8.5 |
|
Glove box light |
2 W |
BA9 s |
|
Instrument lighting |
3 W |
W 2.1x9.5d |
|
Lighting, control panel |
1.2 W |
Volvo P/N 966326 |
|
A/T selector |
1.2 W |
Volvo P/N 966362 |
|
Ashtray, rear |
1.2 W |
Volvo P/N966326 |
|
Warning lights/ |
|
|
|
Indicator lights |
1.2 W |
Volvo P/N966326 |
* Wagon
Vehicle Loading
The tires on your Volvo should perform to specifications at all normal loads when inflated as recommended on the tire information label. The label is located on the rear-facing edge of the right-front door. This label lists both tire and vehicle design limits. Do not load your car beyond the load limits indicated.
WARNING!
|
Tool kit
Wheel nut wrench.
2 screwdrivers (1 Phillips, 1 standard)
Pry bar
2 open end wrenches.
Capacities
Fuel tank (approx.)
15.8 US gal.
60 liters
Cooling System
10 US qts.
(9.5 liters)
Engine
Except B234F 4.0 US qts. * 3.85 liters
at oil change
B234F 4.2 US qts 4.0 liters
Manual transmission
(M46)
2.4 US qts
2.3 liters
(M47)
1.6 US qts
1.5 liters
Automatic transmission
7.9 US qts.
7.5 liters
Automatic transmission
Rear axle
1.7 US qts.
1.6 liters
Power steering gear
0.7 US qts.
0.7 liter
* Turbo: If oil cooler is drained, add 0.7 US qts (0.6 liter)
All specifications are subject to change without notice.
Service Manuals for your Volvo are available for purchase. These are the same manuals used by competent Volvo technicians.
Major sections within the Service Manual System include: 0-General Information; 1- Lubrication and Service; 2- Engine; 3- Electrical System; 4- Power Transmission; 5-Brakes; 6- Suspension and Steering; 7- Springs Shock Absorbers and Wheels; 8- Body and Interior.
A Service Manual Catalog/Order form was placed in the car prior to delivery from the dealer to you. Complete ordering information is provided.
Please note that these manuals may be offered for sale by your Volvo dealer. Prices charged by the dealer can vary from those listed in the brochure (according to Federal law).
Additional copies of the brochure/Order Form may be obtained from your Volvo dealer, or by mail directly from:
Volvo Cars of North America
Rockleigh Industrial Park
Rockleigh, New Jersey 07647
Attention: Volvo Service Literature
Note! The above pertains to USA only. |
Volvo supports Voluntary Mechanic Certification by the A.S.E. Certified mechanics have demonstrated a high degree of competence in specific areas.
Besides passing exams each mechanic must also have worked in the field for two or more years before a certificate is issued. These professional mechanics are fully able to analyze vehicle problems and perform the necessary service procedures to keep your Volvo at peak operating condition.
Note that the above pertains to USA only. |
