pg. 73 Replacing bulbs

NOTE!
The method for replacement of bulbs in the various lighting units is shown on the following pages. Make sure when installing bulbs, that the guide pin on the socket fits into its corresponding recess.
When installing Halogen bulbs, do not touch the glass with your fingers. The reason for this is that grease, oil or any other impurities can be carbonized onto the bulb and damage the reflector.
Use bulbs of correct type and voltage. Failure to do so could cause the bulb failure warning light to activate.



Access to the bulbs is obtained from the engine compartment. Switch off the lights and ignition key.


Note: It may be necessary to remove the washer fluid reservoir fill tube in order to gain access to the bulb holder.

pg. 74 Replacing bulbs (cont.)

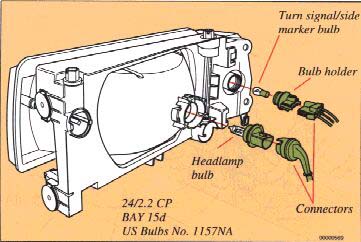

Headlamps


1 Pull the connector out.
2 Loosen the ring by turning it counterclockwise.
3 Pull the bulb straight out.
4 Replace the bulb and reinstall the unit in the reverse order.


Bulb Power US Bulb No.
________________________
Headlamp (45/65) 9004


Turn signal/side indicator


1 To remove, turn the lamp holder 1/4 turn counter-clockwise.
2 Press the bulb in and turn it 1/4 turn counter-clockwise.
3 Replace the bulb and reinstall the unit in the reverse order.


Power CP (W) Socket US Bulb No.
______________________________
24/2.2 (21/5) BAY 15d 1157 NA

pg. 75 Replacing bulbs, Sedans

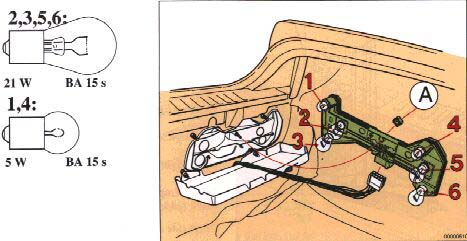

Replacing tail lights bulbs (sedan models)


All tail lamp bulbs are replaced from inside of trunk. To avoid confusion, replace the bulbs one at a time.
1 Unscrew and remove tail lamp inside cover. Note that inside cover is hooked at the lower edge.
2 Remove plastic screw A and remove bulb holder and bulb (one unit).
3 Depress bulb in bulb holder, turn it slightly counterclockwise, and remove it.
4 Install a new bulb. Install bulb holder in tail lamp.
5 Check that bulb lights. Replace tail lamp inside cover.


Bulbs Power Socket US Bulb No
CP(W)
5 Back-up light 32 (21) BA 15s 1156
3 Brake light 32 (21) BA 15s 1156
2 Rear turn signal 32 (21) BA 15s 1156
6 Rear foglamp* 32 (21) BA 15s 1156
1,4 Tail light 4 (5) BA 15s 67

pg. 76 Replacing bulbs, Wagons

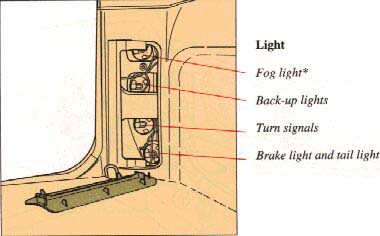

All tail light bulbs are replaced from inside the vehicle


Light Wattage Socket


Fog light * 21W 32CP BA15s
Back-up lights 21W 32CP BA15s
Turn signals 21W 32CP BA15s
Brake light and tail light 21/5W 32/3CP BAY15d


White lamp holders on the right side, black holders on the left side.


Replacing tail light bulbs (wagon models)


To avoid confusion, replace the bulbs one at a time.


• Turn off the lights
• Remove the cover with a screw driver
• Rotate the bulb holder about 1/2" (1 cm) counterclockwise and remove the holder from the tail light cluster.
• Gently press the bulb into the holder, then rotate the bulb counterclockwise in order to release it.
• Install a new bulb in the holder and replace the bulb holder in the tail light cluster.
• Turn the bulb holder clockwise
• Check that the bulb lights
• Re-install cluster cover

pg. 77 Replacing bulbs


Engine compartment light


Insert a screwdriver and pry off the light assembly. Lift it out to remove. Replace the bulb.


Bulb Power Socket
Engine compartment light 10 W SV8.5



Trunk light
(sedan models)


Depress the catch with a screwdriver and remove the light assembly. Lift it out remove.
Replace the bulb.



License plate light
(sedan models)


Remove the screws with a screwdriver. Insert a screwdriver and pry off the light assembly.
Replace the bulb and re-install light housing.


Bulb Power Socket Bulbs Power Socket
Trunk light 10W SV8.5 License plate light 4W Ba9s

pg. 78 Replacing bulbs (cont.)


License plate light
(wagon models)


Remove the screws with a Phillips head screwdriver. Remove lamp housing. Depress the bulb and rotate it counter-clockwise. Remove the bulb. Install a new bulb and re-install light housing.


Bulb Power Socket
License plate light 4W Ba 9s



Depress catch with screwdriver


High-level brake lights


To remove:
Turn off ignition. Depress catch with a screwdriver.
Sedan models
Pull the cover upwards to remove it.
Wagon models
Grasp the cover with both hands and pull it towards you.


Bulb Power Socket
High level brake light 21W 32cp Ba 15s
(US bulb no. 1156)



Depress catches


Depress catches and fit new bulb.


To fit:
Fit the reflector and check that the light works.
Sedan models
Press the cover into position, noting the position of the alignment pin at the top.
Wagon models
Align the catches and press the cover into position.

pg. 79 Replacing bulbs (cont.)


Interior light and reading lights


Take hold of the front section of the light as shown and pull straight down.
Replace the blown bulb and check operation before reinstalling the bulb housing.


Bulb Power Socket
Interior light 10W SV8.5
Reading light 5W W2.1x9.5d



Door Warning lamps


All doors are equipped with red warning lamps. To replace a bulb, insert a screwdriver as shown in picture and gently turn it to remove the lens. Withdraw the bulb, replace it and re-insert the lens


Bulb Power Socket
Door warning lamp 3W W2.1x9.5d
