MAINTENANCE

Maintenance services

Your Volvo has passed two major inspections before being delivered to you, according to Volvo specifications. After being driven 600 - 1,200 miles (1,000 - 2,000 km), your car should be brought to the Volvo dealer for a service inspection. Engine, manual transmission and the rear axle oils will be changed at this time.

Following this inspection, the maintenance services outlined in this book should be performed every 5,000 miles (8,000 km).
The extended maintenance inspection intervals make it even more advisable to follow this program.
Inspection and service should also be performed any time a malfunction is observable or suspected.
It is recommended that receipts for vehicle emission services be retained in the event that questions arise concerning maintenance. See your "Maintenance Records Manual".

Maintenance inspection at 5,000 mile (8,000 km) intervals

Volvo advises you to follow the service program at 5,000 mile (8,000 km) intervals which is outlined in the "Maintenance Records Manual". This maintenance program contains inspections and services necessary for the proper function of your car over the next 5,000 miles (8,000 km).
The maintenance services contain several checks which require special instruments and tools and therefore must be performed by a qualified technician.
To keep your Volvo in top condition, specify time tested and proven Genuine Volvo Parts and Accessories.

The Federal Clean Air Act (USA)

The Clean Air Act requires vehicle manufacturers to furnish written instructions to the ultimate purchaser to assure the proper functioning of those components that control emissions.
The maintenance instructions listed in the "Servicing" section of this Manual represent the minimum maintenance required. These services are not covered by the warranty. You will be required to pay for labor and material used. Refer to your Warranty booklet for further details.
In accordance with Federal Regulations, your Volvo is warranted to meet certain Emission Performance Standards. Refer to your Warranty booklet for detailed information,
• Emissions performance warranty (USA)
• Limited 5-year/50,000-mile Emission System Warranty (USA)
• 5-year/80,000-kilometer Emission System Warranty (Canada)

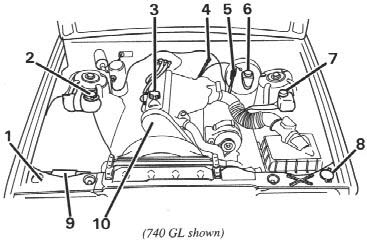

740 B 230F

1 Data plate
2 Expansion tank, coolant
3 Oil filler cap, engine
4 Oil dipstick, engine
5 Oil dipstick, automatic transmission
6 Brake fluid reservoir
7 Oil reservoir, power steering
8 Washer fluid reservoir
9 Battery
10 Engine identification label

Image of engine

When filling gas always check:

Fuel: Recommended 95 RON (unleaded), 91 (R+M)/2. Minimum octane requirement 91 RON (unleaded) 87 (R+M/2).

Canada: Unleaded regular

6 Check, without removing the cap, that the brake fluid level is above the MIN-mark. Brake fluid DOT 4.

4 Oil level should be between the dipstick marks. The distance between the marks represents approx. 1 US qt.=1 liter. When necessary, add oil of the same type as already used.

2 Coolant level should be between the expansion tank marks. Mixture 50% anti-freeze coolant (type C-blue green) and 50% water.

9 Battery - maintenance free type, it is only necessary to check the electrolyte level at each service.

8 Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti-freeze).

Important! Change engine oil and oil filter at 5,000 mile (8,000 km) intervals.

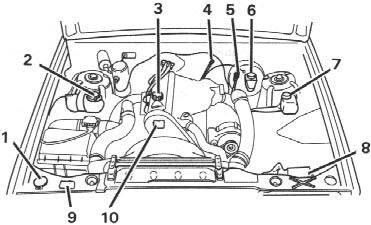

740 Turbo
(B 230 F- Turbo engine)

1 Washer fluid reservoir
2 Expansion tank, coolant
3 Oil filler cap, engine
4 Oil dipstick, engine
5 Oil dipstick, automatic transmission
6 Brake fluid reservoir
7 Oil reservoir, power steering
8 Battery
9 Data plate
10 Engine identification label

Image of engine

When filling gas always check:

Fuel: Recommended 95 RON (unleaded) 91(R+M)/2.
Canada: Unleaded regular

6 Check, without removing the cap, that the brake fluid level is above the MIN-mark. Brake fluid DOT 4.

4 Oil level should be between the dipstick marks. The distance between the marks represents approx. 1 US qt.=1 liter. When necessary, add oil of the same type as already used.

2 Coolant level should be between the expansion tank marks. Mixture 50% anti-freeze coolant (type C-blue green) and 50% water.

8 Battery - maintenance free type, it is only necessary to check the electrolyte level at each service.

1 Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti-freeze).

Important! Change engine oil and oil filter at 5,000 mile (8,000 km) intervals.

Checking the oil level

The oil level must be checked at least every 5,000 km (3,000 miles) or more frequently if needed. Be sure the oil level is maintained between the upper and lower marks on the dip-stick. Low oil level can cause internal damage to the engine and over-filling can result in high oil consumption. The distance between the dipstick marks represents approx. 1 US qt (1 liter) of oil.

Draining the oil

Drain the oil after driving while it is still hot.

To add or change engine oil

Add oil of the same kind as already used. Capacity: 4.0 us qts = 3.85 liters incl. filter*
After an oil change, the oil level will lie between the two marks on the dipstick i.e. between MAX and MIN. This is normal. Do not add too much oil or excessive oil consumption will result.
* if oil cooler (Turbo models) is drained, add 0.7 US qts (0.6 liters).

Changing oil filter

Replace the oil filter at every oil change.

Oil quality

Meeting API specification SG or alternatively API SF

Oil with designation SG/CD and SF/CD comply with these requirements.

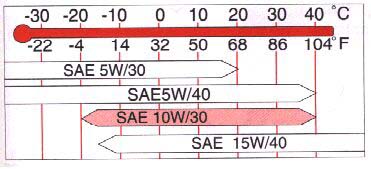

Viscosity (stable ambient temperatures):

SAE 15W/40 is recommended for use in driving conditions that raise oil temperature and increase oil consumption i.e., mountain driving; trailer towing.

Volvo recommends the use of energy-conserving oils. Look for the API label.

Synthetic or semisynthetic oils may be used if their specifications comply with the oil quality requirements.

Volvo does not recommend additional oil additives, as they can adversely affect the engine.

Changing oil and oil filter

Oil and oil filter are first changed at the 600-1,200 mile (1,000-2,000 km) service. Thereafter, changes should be made as specified by this table:
