Volvo - Suspension Front & Rear - Amazon

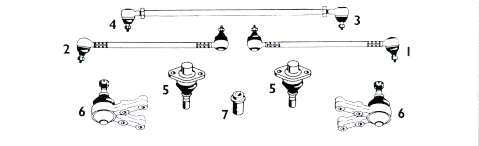

Front Suspension Volvo Amazon (120) ~ 1970
Pic.	Detail	Year	O/E Ref	Art No
1	Tie rod Right	--	658597	85.139
2	Tie rod Left	--	658596	85.140
3	Tie rod end Right	--	658432	85.342
4	Tie rod end Left	--	658431	85.343
5	Ball joint upper R/L	1966~	273030	85.658
6	Ball joint lower R/L	--	273038	85.659
7	Idler arm bushing	--	671444	85.857
--	Bushing for lower controlarm	--	663675	85.817
--	Bushing for anti-roll bar	--	83125	85.828
--	Bushing	--	87033	85.813
--	Rubber cushion (damper) f. lower controlarm R/L	--	675253	85.894

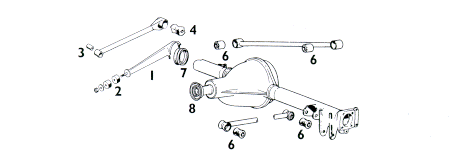

Rear Suspension Volvo Amazon (120) ~1970
Pic.	Detail	Year	O/E Ref	Art No
1	Controlarm R with bushing 85.856	~1966	653443	85.855
1	Controlarm L with bushing 85.856	~1966	653442	85.854
2	Bushing for controlarm	~1966	653461	85.856
3	Bushing for controlarm	1967~	672226	85.823
4	Bushing for controlarm	1967~	676914	85.858
5	Bushing for support bar	~1968	672226	85.823
5	Bushing for support bar	1968~	678790	85.826
6	Bushing for cross bar		87033	85.813
7	Bushing for controlarm		663972	85.972
8	Oil Seal for rear axle 120, 140, 160, 200, 700, 900 All mod.		9143317 (942905)	12.3317
