Volvo - Suspension Front & Rear - 850, S/V 70

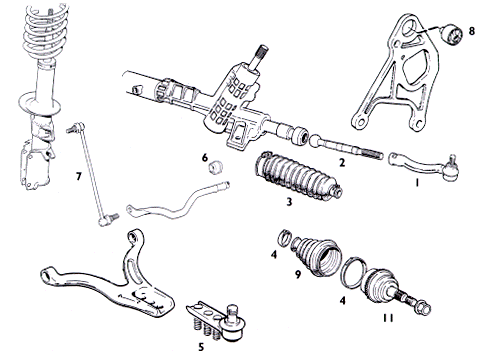

Front Suspension 850, S/V 70
1
2
3
4
5
6
7
8
9
10
13
14
Front Suspension 850, S/V 70 Pic. Detail O/E Ref. Art No. 1 Tie rod end Right 271599 85.1599 1 Tie rod end Left 271598 85.1598 2 Tie rod R/L outside thread 14 mm 3546266 85.6266 3 Boot kit R/L 271601 85.1601 5 Ball joint lower R/L 271591 85.1591 6 Bushing anti-roll bar R/L 3546730 85.6730 7 Stabilizer link R/L 1387860 85.7860 8 Upper engine mount (only bushing) for Torque Arm
(O/E Ref. complete arm 9434433 (1236194)9434288 85.4288 9 CV Boot Kit, outer R/L 271649 50.1649 10 CV Boot Kit, inner R/L 271650 50.1650 11 CV-Joint outer R/L Turbo for drive shafts 8111307, 8111309, 8601103, 8111310 51.20930 11 CV-Joint outer R/L non Turbo for drive shafts 8111303, 8111304, 8111305, 8111306 51.20931 13 Control Arm Right 271902 85.1902 13 Control Arm Right 271901 85.1901 14 Bushing for Control Arm 271631 85.71631 Universal CV joint clamp kit. 2 part numbers (large and small size) replaces over a dozen traditional sizes and they look like original equipment. 50.2060.1 All CV-joints complete with boot kit
