Volvo - Suspension Front & Rear 700 / 900 Series

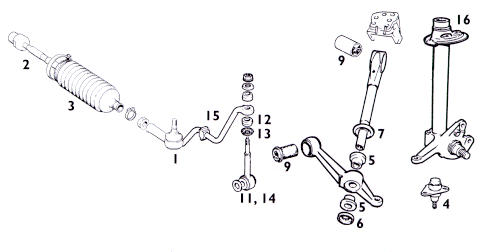

Front Suspension 740, 760, 940, 960
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Front Suspension 740, 760, 940, 960 Pic. Detail O/E Ref. Art. No. 1 Tie rod end outer R/L 3516944 (1205658) 85.348 2 Tie rod inner, 1982~85 R/L CAM outside thread 1273126 85.029 2 Tie rod inner,1985~ R/L ZF outside thread 16 mm 271389 (1387356) 85.034 2 Tie rod inner, 1982~88 R/L CAM outside thread 1359347 85.030 2 Tie rod inner, 1989~ R/L CAM outside thread 14 mm 9140504(1387463) 85.031 3 Boot kit for tie rod CAM left 1983~84, R/L1985~88 271469 85.1469 3 Boot kit for tie rod CAM Right 1983~84 271470 85.1470 3 Boot kit for tie rod R/L CAM 1989~ 270597 85.0597 3 Boot kit for tie rod ZF R/L 1989~ 270475 85.0475 4 Ball joint, lower R/L 270477 (1359590) 85.561 5 Bushing lower control arm R/L 1359599 85.827 5 Reinforced Bushing lower control arm R/L 6819057 85.9057 6 Washer for 85.827, 85.9057 small hole 1359606 85.827S 7 Washer for 85.827, 85.9057 large hole 1359607 85.827L Bolt for 85.827 ~ 85.9057 R/L 949773 85.9773 8 Bushing kit For one side
2x85.827 Bushing
1x85.827L washer
1x85.827S washer
1x949773 bolt
1359599
1359607
1359606
1329612
85.827.18 Bushing kit For one side
2x85.9057 Bushing
1x85.827L washer
1x85.827S washer
1x949773 bolt
6819057
1359607
359606
1329612
85.9057.19 Rear bushing for lower arm R/L 1329655 85.9655 10 Front bushing for lower control arm R/L 1273235 85.3235 11 Rod new type R/L 9157725 (3530230) 85.902 12 Bushing upper for front stabilizer R/L 1205991 85.829 13 Washer for 85.902 R/L 1229303 85.901W 14 Rod complete with 85.902, 85.829 x 2 and 85.901W x 2 85.902.1 15 Bushing anti-roll bar with dia 19 mm R/L 1229389 85.9389 15 Bushing anti-roll bar with dia 21 mm ²Yellow dot² R/L 1273184 85.3184 16 Spring retainer lower R/L 30.004

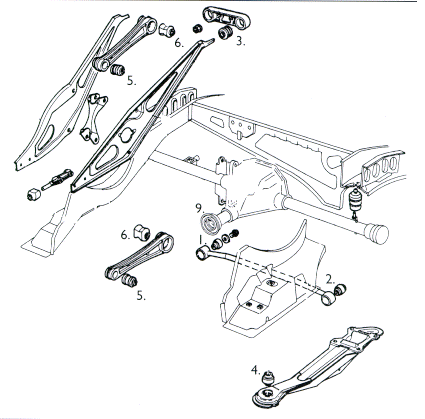

Rear Suspension 740, 760, 940, 960
1
2
3
4
5
6
7
8
9
Rear Suspension 740, 760, 940, 960 Pic. Detail O/E Ref. Art. No. 1 Bushing for crossbar Right 1330427(675807) 85.820 2 Bushing for crossbar Left 1330973(1229715) 85.821 3 Bushing for crossbar R/L 1229873 85.9873 4 Bushing for crossbar R/L 1273628 85.3628 5 Bushing for crossbar front R/L 1229608 85.9608 6 Bushing for crossbar rear R/L 1272306 85.2306 7 900 Bushing for Multilink 1994~ 9140578 85.0578 8 900 Bushing for Multilink Outer 1994~ 9127334 85.7334 9 Oil Seal Rear Axle 120, 140, 160, 240, 740, 760, 900 All models 9143317 (942905) 12.3317
