Volvo - Suspension Front & Rear - 200 Series

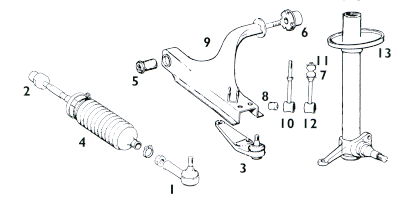

Front Suspension 240, 260 all models
1
2
3
4
5
6
7
8
9
10
12
13
11

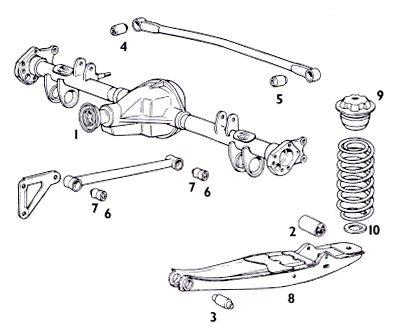

Rear Suspension 240, 260 all models
1
2
3
4
5
6
7
8
9
10
Rear Suspension 240, 260 all models Pic. Detail O/E Ref. Art. No. 1 Oil Seal Rear Axle 120, 140, 200, 700, 900 All models 91143317(942905) 12.3317 2 Bushing rear for support arm R/L 1229165(1229628) 85.868 3 Bushing front for support arm R/L 1229714 85.867 4 Bushing for crossbar Right 1330427(675807) 85.820 5 Bushing for crossbar Left 1330973(1229715) 85.821 6 Bushing for supportbar R/L (fits supportbar 1205797) 1272603 85.819 7 Bushing for supportbar R/L (fits supportbar 1273621) 1273622 85.822 8 Supportarm R/L 1272347(1272361) 85.005 9 Spring seat R/L 1221882 30.002 10 Attaching washer R/L 1206811 30.003
