Volvo - Gasket - Gasket, Gasket Set

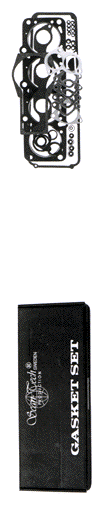

Decarb. Gasket Set
Model/Engine	Year	O/E Ref.	Art No.
B14	1976~	3267493	11.7493
B18E/F inj.	1986~89	3344042	11.4042
B18E/F inj.	1989~	3344043	11.4043
B18FT	1989~	3344044	11.4044
B20A	~1972	275535 271339	11.5535
B20A	1973~76	275559 271339	11.5559
B20B	~1972	275536 271339	11.5536
B20E B20F 1,2 mm cyl. gasket	1974	275560 271341	11.5560
B20E 0,8 mm cyl. gasket	~1973	275553 271341	11.5553
B19A B21A		270676 271342	11.0676
B19E B21E B21F		270677 271342	11.0677
B23A		270685 271342	11.0685
B23E B23F		270684 271342	11.0684
B200K	1985~	270686 271342	11.0686
B200E, ET, F, FT	1985	270688 271342	11.0688
B230A		270687 271342	11.0687
B230E, F, ET, FT, GT		270689 271342	11.0689
B230K	1985~	270599 271342	11.0599
B234	1988~		11.6460
B27A	Contents: 2 x 1218373 6 x 947381 2 x 1271480	275588	11.5588
B27E, F	Contents: 2 x 1218373 6 x 947381 2 x 1271480	270848	11.0848
B28A	Contents: 2 x 1218373 6 x 947381 2 x 1271480	270847	11.0847
B28E, F.	Contents: 2 x 1218373 6 x 947381 2 x 1271480	270846	11.0846
D24 (240)	1979~93	271435	11.1435
D24T	1983~93	275744	11.5744
850 TDI 2,5 5-Cyl	All		11.1601

Conversion Gasket Set
Model/Engine	Year	O/E Ref.	Art No.
B14	1976~		11.0142
B18E, B20	1987~	3342365	11.2365
B18, B20A, B20B, B20D B20E, B20F	~1974	270628	11.0628
B19A, B21A, B23A B200A, B230A, B200K, B230K		270678	11.0678
B19E, B21E, B21F, B23E B200E, B230E, B230F		270679	11.0679
B27, B28		270844	11.0844
D24,D24T		271434	11.1434
850 TDI 2,5 5-Cyl.	All		11.1600
Cylinder Gasket
B14 Std size 1,75 mm for re-surfaced head	1976~	3213461	12.3461 12.0800
B18E/F/FTinj.	1986~	3344303	12.4303
B20A 2,0 mm	~1972	460552	12.0552
B20A 1,2 mm B20E B20F	1973~76 1974~75	462623	12.2623
B19, B21, B200		1378645	12.8645
B23, B230, B234 Exccl. B230K		1378646	12.8646
B230K	1985~	1378412	12.8412
B27 Left Right		245585 245291	12.5585 12.5291
B28, B280 Left Right	~1989	1271496 1271497	12.1496 12.1497
B6304 FS	1991~	1397728	12.7728
D24 1Cut 1,4 mm 2Cut 1,5 mm 3Cut 1,6 mm 11mm bolts -ch 41875	1979~80	1257255 1257256 1257257	12.7255 12.7256 12.7257
D24,T,TiC 1Cut 1,4 mm 2Cut 1,55 mm 3Cut 1,6 mm 12mm bolts ch 41876-	1981~93	9146007 9146008 9146009	12.8017 12.8018 12.8019
850 TDI 1cut 2cut 3cut		9125551 9125552 9125553	12.5551 12.5552 12.5553
B5202, B5252, B5254	1992~	3531017	12.1017
B5254FS	~1993	9135513	12.5513
Manifold Gasket Set
B18, B20A B20B, B20D The set contents manifold- and flange gasket.	1967~68	271339	11.1339
B20E, B20F The set contents manifold- and flange gasket.		271341	11.1341
B19, B21, B23 B200, B230 The set contents gasket for intake manifold, exhaust- manifold and flange gasket.		271342	11.1342
B27, B28		275599	11.5599
850 TDI Exhaust x 2 Exhaust x 3 Intake 9		9180611 9180610 9180612	12.0611 12.0610 12.0612
B5252 Exhaust B5254 Exhaust Intake B5204FS,B5254FS Intake	1993~	271736 271735 9146262 1275055	12.1736 12.1735 12.6262 12.5055
Exhaust Pipe Flange Gasket
B14	1976~	3213218	12.3218
B18, B19, B21, B23 B20, B30A, B200 B230, B234F	1967~	3531326	12.1326
B27, B28		1271480	12.1480
D24		1257314	12.7314
850 W/O EGR		6842441	12.2441
850 With EGR		9135122	12.5122

Manifold Gasket
Model/Engine		O/E Ref.	Art No.
B14 1976~	Exhaust	3213462	12.3462
B18E/ES/F/FT 1986~	Exhaust Intake	3465968 3344314	12.5968 12.4314
B18, B20A, B20D	Exhaust	1378911	12.8911
B20E, B20F	Exhaust	1378912	12.8912
B19,B21,B23,B200 B230(Not Turbo) 4 pcs are needed	Exhaust	271704	12.1704
B19, B21, B23 B200, B230	Intake	1378879	12.8879
B234 16v engine	Exhaust Intake	1378852 1378854	12.8852 12.8854
B27, B28	Exhaust Intake	1218373 947381	12.8373 12.7381
D24, D24T	Exhaust Intake	3547615 3507033	12.7615 12.7033

Valve Cover Gasket
Model/Engine	Year	O/E Ref.	Art No.
B14	1976~	3101036	12.1036
B18E/ES/F/FT	1986~	3343793	12.3793
B18 B20	1961~68 1969~76	419678	12.9678
B19, B21, B23		1378909	12.8909
B200, B230		1378870	12.8870
B234 16v Contents: 1 x 1378853 1 x 1378851 2 x 463416		271393	12.1393
B27E, B27F Left B28E, B28F Right		1271483 1271484	12.1483 12.1484
D24, D24T M11	1979~81	275721	12.5721
D24, D24T M12	1982~86	9135894 (275744)	12.5744
Rubber Seal "halfmoon"
B19, B21, B23		463416	12.3416
Oil Pan Gasket
B14		3267783	12.7783
B18E/ES/F/FT		3345331	12.5331
B18, B19, B20, B21, B23 B200, B230, B234		1378864	12.8864
B27,B28, B280		3514109	12.4109
D24, D24T		3507025	12.7025
850 TDI 2460 cc 5-Cyl	All	9186609	12.6609
