Volvo - Engine - Camshaft / Pistons

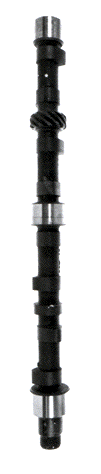

Camshaft
Model/Engine	Year	O/E Ref.	Art No.
B18, B20	Profile A	275761	53.5761
B18, B20	Profile C	275762	53.5762
B18, B20	Profile D	275763	53.5763
B18, B20	Profile K	275764	53.5764
B19A, B21A, B23A, B230A, B23E, B200E, B230E Ref Camshaft="A"		1336767	53.6767
B19E, B21E		1336771	53.6771
200 SER. D24	1979~	1257220	53.7220
260 ser. B27A, F	1976~79 LH	1277821	53.7821
260 ser. B27A, F	1976~79 RH	1277820	53.7820
260 ser. B27E, B28A, E, F	1979~84 LH	1277822	53.7822
260 ser. B28E	1985~ LH	1269977	53.7822
260 ser. B27E, B28A, E, F	1979~84 RH	1277823	53.7823
260 ser. B28E	1985~ RH	1269978	53.7823
700 ser D24	~1988	1257220	53.7220
700 ser D24,TD24	1988~	1328149	53.8149
760 ser. B28A, E	~1988 LH	1269977	53.7822
760 ser. B28F	~1988 LH	1269979	53.7822
760 ser. B280F	1988~ LH	247958	53.7822
760 ser. B28A, E	~1988 RH	1269978	53.7823
760 ser. B28F	~1988 RH	1269980	53.7823
760 ser. B280F	1988~ RH	247960	53.7823
760 ser.B200E, B230E Ref. Camshaft="V"	1985~87	336442	53.6442



Valve Lifter
Model/Engine		O/E Ref.	Art No.
B18, B20, B30		1218630	53.8630
B19, B21, B23, B200, B230		463075	53.3075
D24, DT24		1257059	53.7059
Rocker Arm Kit
B27, B28, B280		271079	53.1079
Rocker Arm Shaft
B27, B28, B280		1218400	53.8400
Camshaft Grease
Installation and running-in-paste 10 grams			53.71120
Expansion Plug
B18, B20, B30	Ø 35 mm	463903	53.3903.1
B18, B20, B30	Ø 42 mm	463902	53.3902.1
B18, B20, B30,B19,B21,B23	Ø 45 mm	463904	53.3904.1
B18, B20, B30	Ø 35 mm	463903	53.3903
B18, B20, B30	Ø 42 mm	463902	53.3902
B18, B20, B30,B19,B21,B23	Ø 45 mm	463904	53.3904
Rubber Washer for Camshaft
200, 300, 700, 900 B200, B230	1985~	1336763	53.6763



Piston
Model/Engine	Year	Dimension	O/E Ref.	Art No.
B14 Liner kit	1976~88	Std	3342003	53.2003
B18E/F	1987~92	Std	3343045	53.2380
B20, B30 With 22 mm piston pin	~1973	Std. 0,015² o.s. 0,030² o.s.	272002 272012 272004	53.2002 53.2012 53.2004
B20 B30 B19 With 24 mm piston pin	1974~76 1974~75	Std. 0,015² o.s. 0,030² o.s.	272056 272058 272059	53.2056 53.2058 53.2059
B21A B21F	1975~80 1975~78	Std. 0,50 mm o.s. 1,00 mm o.s.	272044 272046 272047	53.2044 53.2046 53.2047
B21A B21E B21F	1981~ 1975~ 1979~	Std. 050 100	272040 272042 272043	53.2040 53.2042 53.2043
B21ET	1981~85	Std. 050 100	272064 272066 272067	53.2064 53.2066 53.2067
B23A, E	1979~84	Std. 030 060	272068 272070 272071	53.2068 53.2070 53.2071
B23ET, FT	1982~84	Std. 030 060	272090 272092 272093	53.2090 53.2092 53.2093
B230A, E	1985~88	Std. 030 060	271288 272128 272129	53.1288 53.2128 53.2129
B230F	1987~	Std. 030 060	271329 271327 271328	53.1329 53.1327 53.1328
B234	1988~	Std. 030 060	271728 271730 271731	53.1728 53.1730 53.1731
D24	1979~	Std. 050 100	272032 272034 272035	53.2032 53.2034 53.2035
D24T	1983~	Std. 050 100	272086 270642 270612	53.2086 53.0642 53.0612
B27A Liner kit	1975~80	Std	275050	53.5050
B27E Liner kit	1979~	Std	275058	53.5058
B28E Liner kit	1981~86	Std	275067	53.5067
B5254FS	1992~	Std. 020	272150 272152	53.2150 53.2152
B5252FS 10v	1993~	Std. 040	272138 272159	53.2138 53.2159
B6304FS 24v	1991~	Std. 040	271671 271370	53.1671 53.1370



Piston Ring Set
Model/Engine	Year	Dimension	O/E Ref.	Art No.
B14	1976~88	Std	275322	53.5322
B18	1961~68	Std	275282	53.5282
B18E/F/FT	1987~92	Std	3343250	53.3250
B19, B20 Rings 1, 75~2,0~4, 7mm Rings for 4 pistons	~7/1973	Std. 015 030	275334 275335 275336	53.5334 53.5335 53.5336
B19, B20 Rings 1, 75~2, 0~4, 0 mm Rings for 4 pistons	8/1973~	Std. 015 030	275344 275345 275346	53.5344 53.5345 53.5346
B21A, E, F Rings 2,0~2, 0~4, 0 mm Rings for 4 pistons	1975~	Std. 050 100	275337 275338 275339	53.5337 53.5338 53.5339
B21A, E, F Rings 1, 75~2, 0~4, 0 mm Rings for 4 pistons	1975~	Std. 050 100	275340 275341 275342	53.5340 53.5341 53.5342
B23A, E, F Rings 1, 75~2, 0~4, 0 mm Rings for 4 pistons	1978~	Std. 030 060	275331 275332 275333	53.5331 53.5332 53.5333
B230A, E, F B234 Rings 1, 75~1, 75~3, 5 mm Rings for 4 pistons	1985~ 1988~	Std. 030 060	275369 275370 275371	53.5369 53.5370 53.5371
B27A/E Rings 1,50~2,0~4,0 mm	1975~	Std	275319	53.5319
B28E Rings 1,50~2,0~4,0 mm	1981~	Std	275343	53.5343
D24, D24T	1979~	Std. 050 100	275327 275329 275330	53.5327 53.5329 53.5330
B5254FS	1992~	Std. 020	271612 271372	53.1612 53.1372
B5252FS	1993~	Std. 020	271612 271372	53.1612 53.1372
B6304FS	1991~	Std. 020	271612 271372	53.1612 53.1372
