Volvo - Clutch & Gearbox Parts

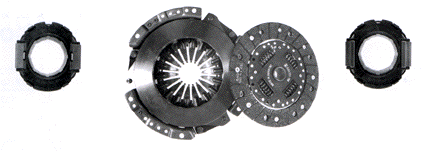

Clutch Kit
Model	Gearbox	Engine	Year	O/E Ref.	Art No.	Remarks
Amazon 140 240 740 940	M40,41,45,46	4 cyl	~1978	271263	40.1500>	3000123032
	M45,46	4 cyl excl turbo	1979~84	271266	40.1501>	3000123033
	M45,46 M47	4 cyl excl turbo	1985~ 1985~	271267 271267	40.1502> 40.1502>	3000124036 3000124036
240 Turbo	M46	B21ET	1981~85		40.1503>
240 GLT		B27, B28	1980~84		40.311	3000537001
260	M45, M46	B27A/E	1975~78		40.300
260	M50, M51	B27A/E	1975~78		40.301
260	M46	B27, B28A/E	1979~85		40.311	3000537001
340	M45, M47	B14	1978~87	273767	40.306	3000170001
340	M45	B19	1981~82	274058	40.308	3000532001
360	M45, M47	B19A/E B200K/E	1983~89	270199	40.312	3000535001
440, 460	M50	B18F	1989~94	3344287	40.328	3000154001
440, 460 Turbo	To Ch.No ~205699	B18FT	1988~91	3344288	40.330	3000441001
440, 460 Turbo	Fr. Ch.No 205700~	B18FT	1991~94	3344859	40.333	3000603001
480 ES		B18F	1986~92	3344287	40.328	3000154001
480 Turbo	To Ch.No. ~567599	B18FT	1986~91	3344288	40.330	3000441001
480 Turbo	Fr. Ch.No. 567600~	B18FT	1991~94	3344859	40.333	3000603001
740 Turbo	M46	B230ET/FT	1985~91		40.1505>
740 GLT	M46	B234F	1988~90		40.1506>
760 GLE	M46	B28A/E	1982~86		40.311	3000537001
760 Turbo	M46	B23ET	1983~84		40.1505>
760 Turbo	M46	B230ET	1985~		40.1505>
850 GLT, 20V		B5254F	1992~94	271494	40.1509	3000540001
850 GLE,10V		B5252F	1993~94	271494	40.1509	3000540001
940 GLT, 16V		B230F	1991		40.1506>
940 Turbo	M46	B230FT	1991~93		40.1507>	3000539003
240D 740	M46	D24 D24, D24 T	1979~87 1983~87	271265	40.1504>	3000124035
> = RELEASE BEARING ARE NOT INCLUDED IN THE KIT

Release Bearing
Model	Year	O/E Ref.	Art No.	Remarks
All models	~1984	3549881(1220955)	40.170	3151190031
All models	1985~	3549391(1220949)	40.173	3151189031
B27, B28	1975~	381213	40.174	3151038031
B14	1978~	3209530	40.175	3151078001
B18	1986~	3467165(3411119)	40.176	3151847001
B19 (300)	1980~	3205955	40.177

Clutch Slave Cylinder
Model		Year	O/E Ref.	Art No.
240 RHD	22 Ø	1974~	1205733	40.5733
260 RHD	25,4 Ø	1975~85	1272370	40.2370
740, 760 RHD	2.3 22,2 Ø 2.8 25,4 Ø 25,4 Ø	1982~91 AP Lockhead 1982~91 FAG 1982~83 1983~91	1205733 6843913 1272370 1273679	40.5733 40.3681 40.2370 40.3679

Repair Kit Clutch Master Cylinder
Model	Year	Type	Art No.
164 19,0mm	1968~74	ATE	18.1200
240 19,0mm		LOCKHEED	18.1196
240 19,0mm		FAG	18.1162
740 19,0mm		FAG	18.1179
Repair Kit Slave Cylinder
164 23,8mm	1968~74	ATE	18.3219
240 22,2mm		LOCKHEED	18.3179
240 25,4mm		FAG	18.3180
240, 740 20,6mm		FAG	18.3187
740 22,2mm		DieselFAG	18.3192
740 25,4mm		FAG	18.3193

Pivot Bearing
Model	Year	O/E Ref.	Art No.
B20 B30 B19, B21, B23, B200, B230	1975~	181799	51.6202
Clutch Cable
240	1975~	1377669	40.7669
740 (excl. Turbo) 240, 760 diesel		271915 (6814279)	40.4279 (1272229
Drive Belt, Variomatic
340 all models with variomatic		3266545	40.6545

Gear Shift Knob
Model/Engine	Year	O/E Ref.	Art No.
240, 740, 940	1979~93	3520179	99.0179
Shifter Overdrive Cap
240, 260	1975~80	1220494	99.0494
240, 260, 740	1981~	1232682	99.2682
Overdrive Switch
240, 260 Sliding switch	1975~80	1234508	99.4508
240, 260, 740 Push-buttonmarked ³5²	1981~	1362693	99.2693

Engine Protecting Plate
Model/Engine	O/E Ref.	Art No.
240, 260	1382407 (1245390)	53.2407
700, 900	9406744 (3538690)	53.8690
Pedal Pad for Brake and Clutch Pedal
120, 140, 240, 260, 740, 760 ,940, 960, S90, V90 Fits brake and clutch pedalfor cars with manual gearbox	1272021	51.2021
120, 140, 240, 260, 740, 760, 940, 960, S90, V90 Fits brake pedal for cars with automatic gearbox	1272066	51.2066
850, C70, S70, V70 Fits brake and clutch pedal for cars with manual gearbox	3546021	51,6021
850, C70, S70, V70 Fits brake pedal for cars with automatic gearbox	3516078	51.6078

Automatic Gearbox Parts
Gasket/rubber sets		Year	Art No.	Remarks
Model Qty plates
BW55/AW55	14/16	1974~82	40.25408
AW70/71	20/17	1979~95	40.25705
BW35	10/9	1963~76	40.31704
AW5040	10/9	1989~95	40.35005
ZF4HP-22	26/26	1984~94	40.31805
ZF4HP-22	26/31	1984~94	40.31805
Overhaul Kit
BW55/AW55	14/16	1974~82	40.25407
AW70/71	20/17	1979~95	40.25708
BW35	10/9	1963~76	40.31702
AW5040	25/24	1989~95	40.35002
ZF4HP-22	26/26	1984~94	40.31802
ZF4HP-22	26/31	1984~94	40.31802
AW5040	25/24	1993~95	40.35002
Banner Kit (master kit less steel)
BW55/AW55	14/16	1974~82	40.25403
AW70/71	20/17	1979~95	40.25701
BW35	10/9	1963~76	40.31701
AW5040	25/24	1989~95	40.35001
ZF4HP-22	26/26	1984~94	40.31801
ZF4HP-22	26/31	1984~94	40.31801
AW5040	25/24	1993~95	40.35001
Master Kit
BW55/AW55	14/16	1974~82	40.25401
AW70/71	20/17	1979~95	40.25700
BW35	10/9	1963~76	40.31700
AW5040	10/9	1989~95	40.35005A
ZF4HP-22	26/26	1984~94	40.31800
ZF4HP-22	26/31	1984~94	40.31800A
AW5040	25/24	1993~95	40.35000
Deluxe Kit
BW55/AW55	14/16	1974~82	40.25497
AW70/71	20/17	1979~95	40.25727
BW35	10/9	1963~76	40.31795
Super Kit
BW55/AW55	14/16	1974~82	40.25498
AW70/71	20/17	1979~95	40.25728
BW35	10/9	1963~76	40.31796
ZF4HP-22	26/26	1984~94	40.31813
ZF4HP-22	26/31	1984~94	40.31813A
Friction Clutch Packs
BW55/AW55	14/16	1974~82	40.25480
AW70/71	20/17	1979~95	40.25780
BW35	10/9	1963~76	40.29880
ZF4HP-22	26/26	1984~94	40.31880
ZF4HP-22	26/31	1984~94	40.31880
Steel Clutch Packs
BW55/AW55	14/16	1974~82	40.25481
AW70/71	20/17	1979~95	40.25781
BW35	10/9	1963~76	40.29881
ZF4HP-22	26/26	1984~94	40.31881
ZF4HP-22	26/31	1984~94	40.31881A
Sealing Ring Kit
BW55/AW55	14/16	1974~82	40.25461
AW70/71	20/17	1979~95	40.25760
BW35	10/9	1963~76	40.31760
AW5040	25/24	1989~95	40.35060
ZF4HP-22	26/26	1984~94	40.31860
ZF4HP-22	26/31	1984~94	40.31860
AW5040	25/24	1993~95	40.35060
A/T Filter (Automatic gear box)
AW 70/71		~88 1239829	97.9829
AW/BW 58		1233394	97.3394
AW 70/71		1988~ 1340021	97.0021
BW 35		1220609	97.0609

Bushing for Automatic Gearbox
Model	Gearbox	O/E Ref.	Art No.
240 260 740 760 940	AW 55 BW 55 AW 70 AW 71 AW 72	235878	99.5878
