Scan-Tech Sweden - Volvo - Body - Sheet Metal / Moldings

Volvo - Body - Sheet Metal / Moldings

Hood/ Bonnet
Model	Year	Description	O/E Ref.	Art No.
200	1975~85	Single H/lamp	1315287 (1304042)	10.5287
200	1986~		1315399	10.5399
200	1975~85	Dubl. H/lamp	1304040	10.04040
300	1982~91		3287121	10.7121
400	1989~93		3343273	10.3273
400	1989~93		3344953	10.4953
700	1983~		1380865	10.0865
700	1984~87		1334509 (1355076)	10.4509
850	1992~97		1372917	10.2917
940 740 760	1990~ 1991~ 1988~		3526234	10.6234
940 GL, GLE	1991~94		3526343	10.6343
940 SE 960 Steel	1990~		1355339	10.5339
S40, V40	1995~		30844311	10.4311
S70, V70	1997~		9152709	10.2709

Upper Member, R/Support

Model Year Description O/E Ref. Art No.

240, 260 1975~85 1315754
(1254680) 10.5754

Upper Bar, Support

740, 760 1984~86 3503033 10.3033

700, 900 1988~94 356754 10.6754

Light Case RH

240, 260
240, 260 1980~81
1980~81 RH
LH 12002252
12002251 10.2252
10.2251

Panel Head Lamp

740, 760 GLE w/o wiper h.

740, 760 GLE w wiper h.
740, 760 GLE w wiper h. 1984~87

1984~87
1984~87 RH
LH
LH
RH 1321615
1321616
1321614 (1334980)
1321613 (1334979) 10.1615
10.1616
10.1614
10.1613

Nose Panel

850 1992~97 9151585
(1372541) 10.1585

Sub-Frame

740, 760 1980~87 Petrol 8v 1378781
(9140852) 10.8781

Front Crossmember

740, 760 1984~87 3536602 10.6602

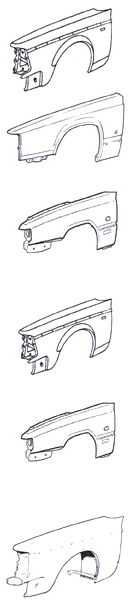

Fender/ Front Wing
Model	Year	Description	O/E Ref.	Art No
200	1975~80	Left Right	1382277 (1304055) 1382278 (1304056)	10.2277 10.2278
200	1981~83	Left (1255920) Right (1255921)	1315938 1315939	10.5938 10.5939
200	1984~	Left Right	1315424 1315425	10.5424 10.5425
200	1986~	Left w/side lamp Right w/side lamp		10.5426 10.5427
400	1989~	Left Right	3343278 3343280	10.3278 10.3280
700	1982~ 89	Left Right	1355059 1355060	10.5059 10.5060
700	1988~	Left Right	3503183 3503184	10.03183 10.03184
760	1988~	Left Right	1355411 1355412	10.5411 10.5412
850	1992~97	Left Right	9133680 9133681	10.3680 10.3681
S40, V40	1995~	Left Right	30844333 30844334	10.4333 10.4334
S70, V70	1997~	Left Right	9152679 9152680	10.2679 10.2680

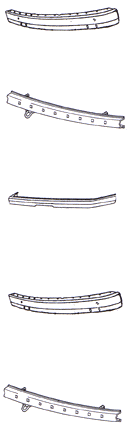

Front Bumper, Reinforcement
Model	Year	Description	O/E Ref.	Art No
200	1986~92		1248585 1312931	10.8585
240	1987~90		1247210	10.7210
400	1986~93		3332768	10.2768
440, 460	1994~		3461438	10.1438
740 760	1983~89 1983~87		1369068	10.9068
700, 900	1988~94	Euro Type	1358564	10.8564
760 940 960	1988~90 1991~95 1991~94		1358600	10.8600
850	1992-	upper	3512818	10.2818
850	1992~		9151661 (9133132)	10.1661
850	1992-	front bumper	6817746	10.7746
S/V40	1996-		30800806	10.0806

Spoiler Assy
Model	Remarks/Descr.	Year	O/E Ref.	Art No.
740	Spoiler Assy	1988~89	1325317	10.5317
740	Front Apron Lower	1990~91	1358507	10.8507
740	Cover Hole	1984~89	1321308	10.1308
Interior Mudguard for Fender
200	Front All models Sold only in pairs left and right		1304424 1304425	10.4424
200	Rear All models Sold only in pairs left and right			10.4423
Fuel Tank
200		1975~78	3501385	10.1385
200		1979~	3517373	10.7373
700		1982~87	3547656	10.7656

Head Lamp Moulding
Model	Remarks/Descr.	Year	O/E Ref.	Art No.
740,900 740,900 760 760		1990~ R 1990~ L 1988~ R 1988~ L	1358548 1358549	10.8548 10.8549
700 700 940 GLT 940 GLT		1988~ R 1988~ L 1990~ R 1990~ L	1358550 1358551	10.8550 10.8551
850 850	Right W/Hole, W/LP Sgl Bulb Left W/Hole, W/LP Sgl Bulb	1993~1997 1993~1997	6817850 6817849	10.7850 10.7849
850 850	Right W/O Hole, H/LP Sgl Bulb Left W/O Hole, H/LP Sgl Bulb	1993~1997 1993~1997	9133550 9133549	10.3550 10.3549
850 850	Right W/ Hole, H/LP Dual Bulb Left W/ Hole, H/LP Dual Bulb	1993~1997 1993~1997	9151237 9151236	10.1237 10.1236
850 850	Right W/O Hole, H/LP Dual Bulb Left W/O Hole, H/LP Dual Bulb	1993~1997 1993~1997	9151239 9151238	10.1239 10.1238
Moulding for Bumper
940, 960 SE	For bumper Chromed	1991~94	3518262	10.8262
940, 960 SE	For bumper Black	1991~94	3518816	10.8816
940, 960 SE 940, 960 SE	Right Cover Outer Chromed Left Cover Outer Chromed	1991~94 1991~94	1358573 1358572	10.5873 10.5872
940, 960 GL,GLE 940, 960 GL,GLE	Right Cover Outer Black Left Cover Outer Black	1991~94 1991~94	3518824 3518818	10.8824 10.8818
