Saab - Front & Rear Suspension - 9000

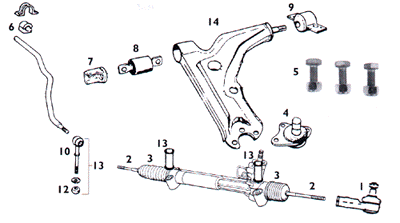

Front Suspension 9000
1	2		3
4	5	6	7
8	9		10
11	12		13

Front Suspension 9000
Pic.	Description	O/E Ref.	Art No.
1	Tie rod end	8993453	85.422
2	Tie rod inner. All 9000 with P.S	8962250	85.024
3	Boot kit for tie rod with P.S Left	8962243	50.2243
3	Boot kit for tie rod with P.S Right	8962516	50.2516
4	Ball joint	8972135	85.629
5	Bolt kit for ball joints (3 bolts and 3 nuts)	7982986 x 3 7975501 x 3	85.003
6	Bushing anti-roll bar 9000 all mod. ~1991	8965378	85.5378
6	Bushing anti-roll bar 9000 all mod. 1992~ .	8968992	85.8992
7	Bearing support 9000 all mod.	4426003 (8969669)	85.6003
8	Bushing for controlarm 9000 all mod.	8961476	85.1476
9	Bearing anchorage 9000 all mod.	8965253	85.906
10	Rod for anti-roll bar 9000 all mod.	8958944	85.8944
11	Rod complete with bushing 85.3986, washer and nut		85.8944.1
12	Bushing for anti-roll bar rod 9000 all mod.	8953986	85.3986
13	Bushing for steering rack 9000 all mod.	8993511 (8934119)	85.4119
14	Controlarm Left	8958365	85.8365
14	Controlarm Right	8958373	85.8373

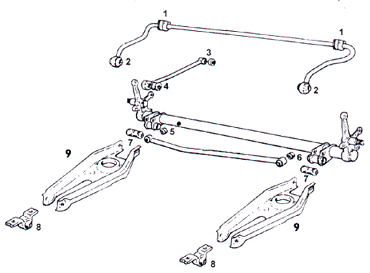

Rear Suspension 9000
1	1	2
3	4	5
6	7	8

Rear Suspension 9000
Pic.	Description	O/E Ref.	Art No.
1	Bushing anti-roll bar 9000 4 door all mod.	4425575	85.5575
1	Bushing anti-roll bar 9000 5 door all mod.	4425583	85.5583
2	Bearing bushing ant-roll bar 9000 all mod.	8962011	85.2011
3	Bushing support bar rear 9000 all mod.	8956468	85.6468
4	Bearing support bar front 9000 all mod.	8955759	85.5759
5	Bushing crossbar right 9000 all mod.	8957532 (8972655)	85.7532
6	Bushing crossbar left 9000 all mod.	8952558	85.2558
7	Bushing spring link rear 9000 all mod.	8951063	85.1063
8	Bearing anchorage spring link front 9000 all mod	8957714	85.7714
9	Control arm Left & Right	8970782	85.0782
