Saab - Front & Rear Suspension - 90, 99, 900

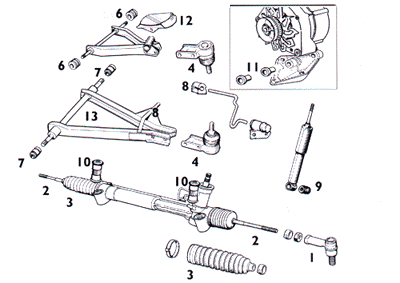

Front Suspension 90, 99, 900 ~1993
1
2
3
4
5
6
7
8
9
10
11
12
13
Front Suspension 90, 99, 900 ~1993 Pic. Description O/E Ref. Art No. 1 Tie rod end outer ~1974 R/L 8993347
(8903197)85.302 1 Tie rod end outer 1975~ R/L 8993354 85.303 2 Tie rod inner All 900 with P.S 8988941 85.049 3 Boot kit for tie rod w/o P.S. R 8944738
(8910721)85.920 3 Boot kit for tie rod w/o P.S. L 8947913
(8944720)85.919 3 Boot kit for tie rod with P.S All models R/L 8993099 50.3099 4 Ball joint upper and lower R/L 8993321 85.625 5 Bolt kit for ball joint (2 bolts and 2 nuts) 8990012 x 2
7969306 x 285.001 6 Bushing upper control arm 900 all mod. 7163603 85.3603 7 Bushing lower control arm 900 all mod. 7184443 85.4443 8 Bushing anti-roll bar 900 all mod. 8990087 85.0087 9 Bushing for shock absorber 900 all mod. 8932840 85.908 10 Bushing for steering rack 900 all mod. 8993511
(8934119)85.4119 11 Bushing alternator 900 all mod. 7541451 51.1451 12 Spring support lower, 90, 99, 900 all mod ~1993 8919870 30.9870 13 Control arm 900 Left 4199576
(8934788)85.9576 13 Control arm 900 Right 4199584
(8934796)85.9584 1 Bushing support bar rear 900 all mod. ~1987 8932741 85.898 1 Bushing support bar rear 900 all mod. 1988~ 8956468 85.6468 2 Bushing for support bar front 90, 99, 900
all mod ~19878908675 85.897 2 Bushing for support bar front 900 all mod.1988~
9103110 85.899 3 Bushing for for cross bar right 900 all mod. 8930307 85.0307 4 Bushing for cross bar left 900 all mod. 8932014 85.2014 5 Damper 90, 99, 900 all mod. ~1993 8922445 85.907 6 Bushing for spring link rear 900 all mod. 8935306 85.5306 7 Bushing for spring link front 900 all mod. 8935208 85.5208 8 Controlarm Left 8936304 85.6304 8 Controlarm Right 8947210 85.7210

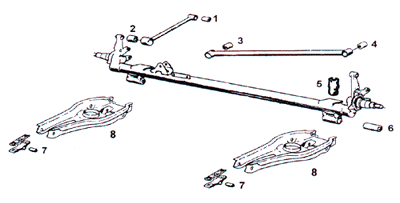

Rear Suspension 90, 99, 900 ~1993
1
1
2
2
3
4
5
6
7
Rear Suspension 90, 99, 900 ~1993 Pic. Description O/E Ref. Art No. 1 Bushing support bar rear 900 all mod. ~1987 8932741 85.898 1 Bushing support bar rear 900 all mod. 1988~ 8956468 85.6468 2 Bushing for support bar front 90, 99, 900 all mod ~1987 8908675 85.897 2 Bushing for support bar front 900 all mod.1988~ 9103110 85.899 3 Bushing for for cross bar right 900 all mod. 8930307 85.0307 4 Bushing for cross bar left 900 all mod. 8932014 85.2014 5 Damper 90, 99, 900 all mod. ~1993 8922445 85.907 6 Bushing for spring link rear 900 all mod. 8935306 85.5306 7 Bushing for spring link front 900 all mod. 8935208 85.5208 8 Controlarm Left 8936304 85.6304 8 Controlarm Right 8947210 85.7210
